TESEQ HLA 6120 环形磁场天线

发布时间:2016-06-13 信息有效期:30天 浏览:1534举报
TESEQ HLA 6120 环形磁场天线
  • 信息分类:生产测试 - 其它生产测试
  • 所在区域:广东省 - 深圳市
  • 有效日期:30天
  • 信息类型:采购信息
信息详情

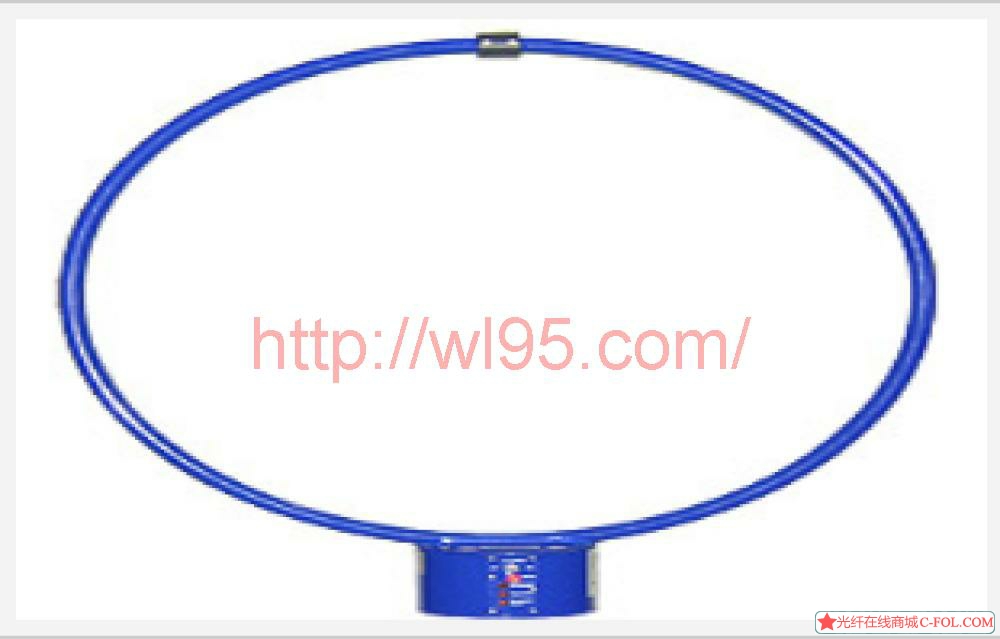

TESEQ HLA 6120 环形磁场天线


天线因数低且平滑可与大多数EMI接收机配套使用具有脉冲过载报警功能


产品特点:HLA 6120是3米磁场测量的理想工具,符合CISPR 11 (参考CISPR 16-1-4和 CISPR 16-2-3)标准和FCC 18标准要求。内置的前置放大器匹配测量接收机的低阻抗要求。


技术参数:频率范围: 9 kHz ~ 30 MHz天线因数: 20 dB (typical)最大测量长度: >137 dBμV/m (7 V/m)过载值: 140 dBμV/m (10 V/m)输出电压进入50 Ω: >2 V p-p输出阻抗: 50 Ω报警(LED): 低功率 / 过载信号远程输出最大电流: 30 mA电压要求(内部稳压): ±12 V to ±20 V电压要求(电池): ±8.5 V to ±12 V电流要求 (最大信号): ±80 mA电流要求 (典型无信号): ±40 mARF 接头: BNC电压/遥控连接器: 8种锁定方式操作温度: 0 to 50 °C安装螺纹: 5/8 UNEF内环直径: 600 mm尺寸 L xW in mm: 620 x 700重量: approx. 2 kg推荐三脚架: CTP 6099The HLA 6120 is ideal for the 3 m magnetic field measurements as required e.g. by CISPR 11 (reference CISPR 16-1-4 and CISPR 16-2-3) and FCC 18. The built-in preamplifier matches the extremely low impedance of the loop to the measuring receiver. The HLA 6120 has a virtually constant factor over the whole of its frequency range, making it ideal for swept measurement systems. Overload Warnings for Confidence of Measurement One of the main reasons active HF antennas have not been widely accepted is the lack of overload warnings. With the HLA 6120 overload indications are given when signals are present at a level likely to cause nonlinearity in the preamplifier and thus impair the integrity of the measurement. This important feature detects the presence of high level signals, either pulsed or continuous, and gives a warning. Even single pulses (clicks) can be detected. For unattended measurements, a hold facility can be used. When the antenna is used remotely, TTL level logic signals provide a warning indication. Power Sources The antenna is powered by an external power supply / battery pack (CBP 9720), allowing operation both near to a mains power supply and in remote applications. Frequency range: 9 kHz to 30 MHzAntenna factor: 20 dB (typical)Maximum measurable field: >137 dBμV/m (7 V/m)Overload threshold: 140 dBμV/m (10 V/m)Output voltage into 50 Ω: >2 V p-pOutput impedance: 50 ΩWarnings (LED): low power / signal overloadMax current of remote outputs: 30 mAVoltage requirements (internally regulated): ±12 V to ±20 VVoltage requirements (battery): ±8.5 V to ±12 VCurrent requirements (max signal): ±80 mACurrent requirements (typical no signal): ±40 mARF connector: BNCPower/remote connector: 8 way locking (screened)Operating temperature range: 0 to 50 °CMounting thread: 5/8 UNEFLoop diameter: 600 mmSize L xW in mm: 620 x 700Weight: approx. 2 kgRecommended tripod: CTP 6099 Power supply requirements: 90 V to 126 V or 207 V to 253 V, AC 45 Hz to 63 HzFuse: 6.3 x 32 mm, type F for 220 V/240 V: 160 mA for 100 V/120 V: 250 mANominal output voltage: ±9.6 VFuse: 2 x 160 mA, 5 x 20 mm, type T Charging time: 16 hOperating time (25°C): >16 hMains connector: IEC 60320 C14Output connector: 8 way locking DINOperating temperature range: 0 to 45 °CSize L x W x H in mm: 210 x 128 x 80Weight: approx. 1150 gPart number Description346-455 HLA 6120 RF Loop antenna 9 kHz - 30 MHz complete with universal power supply/ battery pack97-244570 Ant Cert-TC Traceable calibration (ISO17025), order only with the antenna, free space calibration (horizontal), other calibrations on request348-053 CTP 6099 Tripod (special for outdoor applications), suitable for HLA 6120348-100 CAS 6000 Tripod set, includes tripod CTP 6099, cable 10 m BNC(m)-BNC(m), adapter N(m)-BNC(f) and transit case, suitable for HLA 6120348-102 CAS 6002 Tripod set, includes tripod CTP 6099, cable 10 m BNC(m)-BNC(m), 10 m N(m)-N(m), adapter N(m)-BNC(f), glasfiber tubes with 1 m and 105 mm CAS 6021 and 6022, CAS 6020 mast top, mounting head CAS 6023 and transit case348-112 CAS 6012 Tripod set, includes tripod CTP 6099, cable 10 m BNC(m)-BNC(m), 10 m N(m)-N(m), adapter N(m)-BNC(f), glasfiber tubes with 1 m and 105 mm CAS 6021 and 6022, CAS 6020 mast top and mounting head CAS 6023348-115 CAS 6015 Tripod set, includes tripod CTP 6099, glasfiber tubes with 1 m and 105 mm CAS 6021 and 6022, CAS 6020 mast top and mounting head CAS 6023
